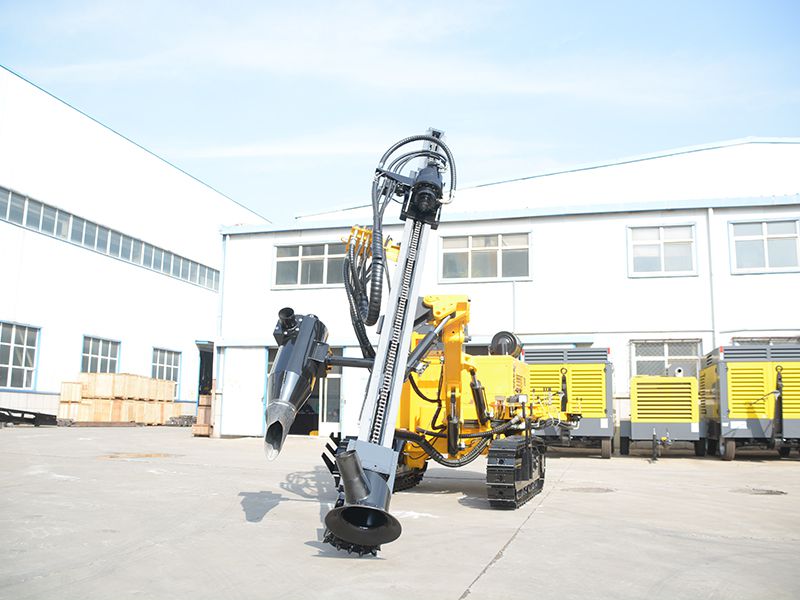

Crawler Mounted Hydraulic DTH Drilling Rig

JK590BC

Crawler Mounted Hydraulic DTH Drilling Rig

Surface drill rig for open-pit mining & road construction
Borehole diameter: 90-165mm
Borehole depth: 50m
Walking speed: 2km/h, 3km/h
Optional: Hydraulic dry dust collector/wet dust collector
Request a Quote

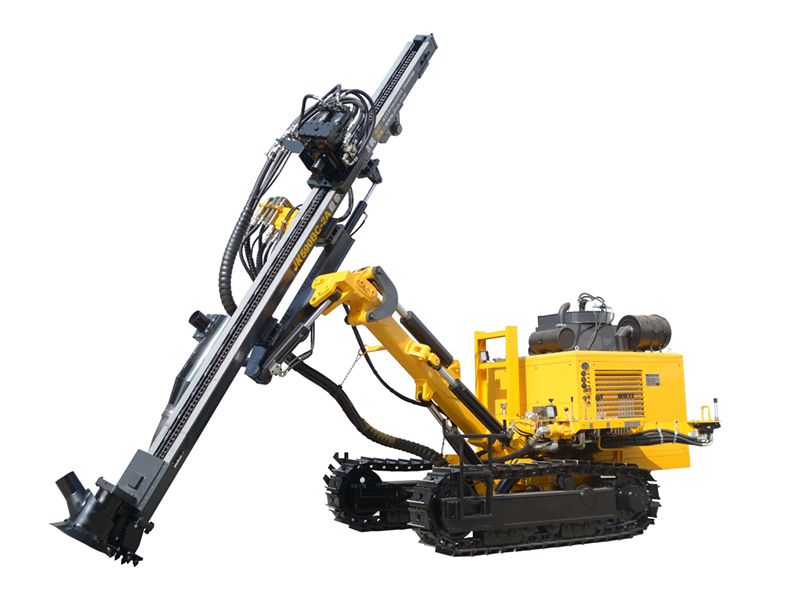

JK590BC-2A Crawler Mounted Hydraulic DTH Drilling Rig

The crawler-mounted DTH drilling rig is well designed to drill through rocks easily, efficiently and at a low cost. As a star product among separated DTH drilling rig, it has sold thousands of units worldwide.

The drilling rig is powered by a power unit composed of diesel engine and hydraulic oil pump, with a hydraulic motor facilitating drilling, feeding, lifting, walking and hydraulic cylinder positioning. During operation, compressed air is utilized only by the DTH hammer, which reduces air compressor’s output by 30% to 50% compared to pneumatic drill rigs and lowers energy consumption (fuel oil or electricity) by 40% to 50%.

Applications
The drilling rig is widely used for hydro-power engineering, open pit mining, road construction, drilling and blasting operation of national defense engineering.

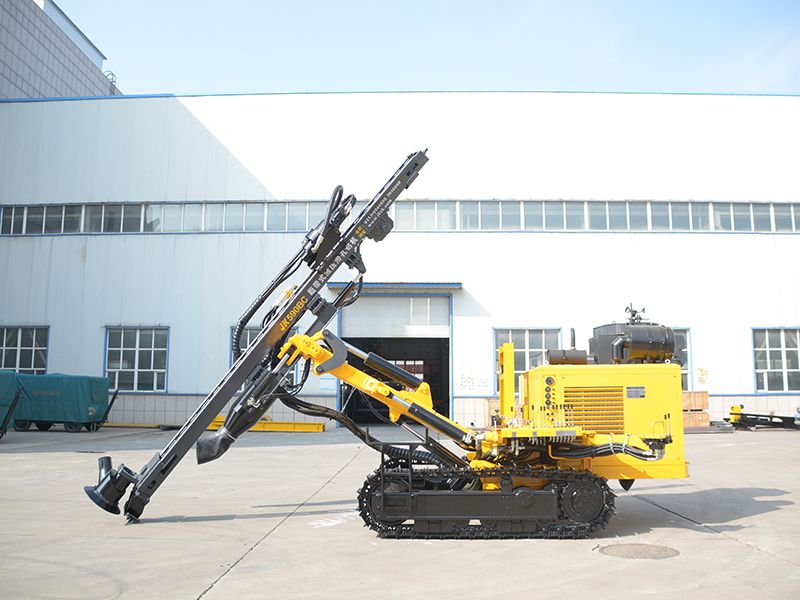

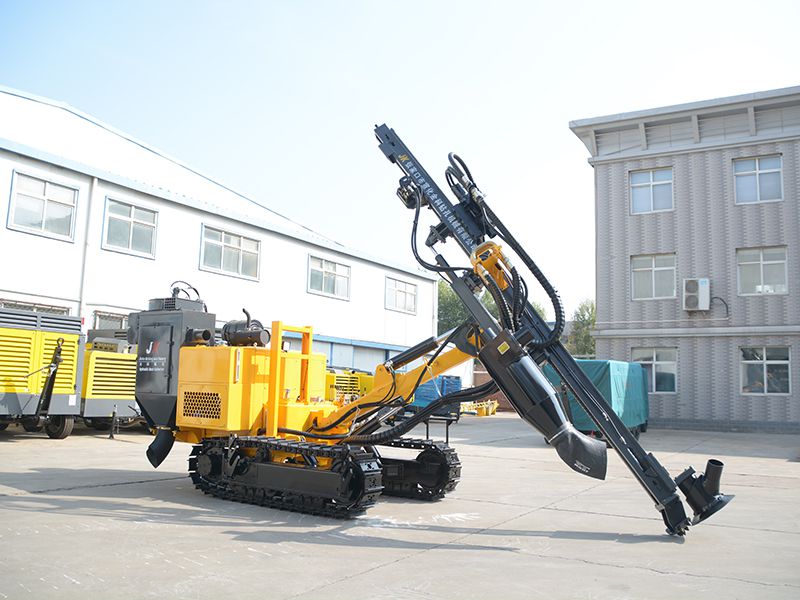

Crawler Mounted Hydraulic DTH Drilling Rig
Crawler Mounted Hydraulic DTH Drilling Rig Crawler Mounted Hydraulic DTH Drilling Rig Crawler Mounted Hydraulic DTH Drilling Rig
Technical Specifications
Model JK590BC
Borehole diameter 90-165mm
Borehole depth 50m
Applicable rock hardness f=6-20
Working air pressure 1.2-2.5MPa
Air consumption 11-21m³/min
Feeding stroke 4138mm
Rod-changing length 3m
Max. horizontal drilling height 3370mm
Rotation rate 0-80rpm
Rotation torque 4000Nm/2000N.m
Walking speed 2km/h, 3km/h
Grade ability 24°
Power Yuchai 70kW/Cummins 74kW (optional)
Electric motor 55kW
Dust collector (optional) Hydraulic dry dust collector
Wet dust collector
Dimension (L×W×H) 7000×2200×2100mm
Weight 7200kg
Main Components
  • Rotation unit

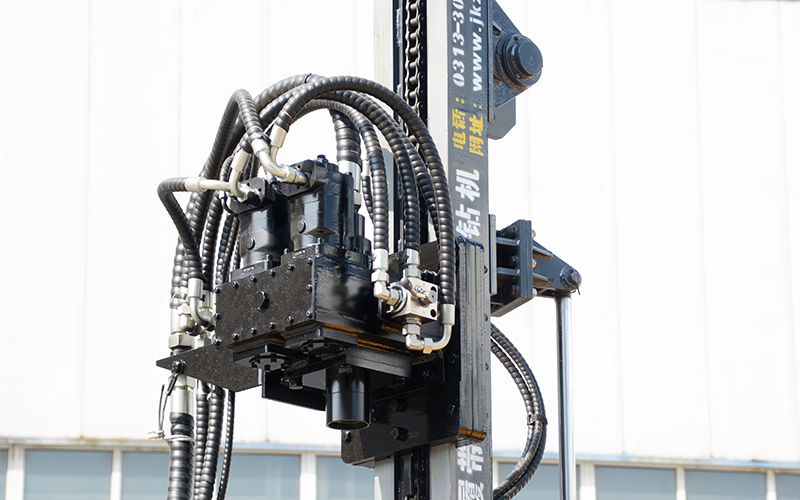

    Rotation unit
    Two motors provide large torque and precise control of two rotation speeds.
    Imported rotary seals ensure reliable sealing performance and long service life.
    High molecular liner plates are wear-resistant and durable.
    Manganese steel-framed guide rail is added to protect the mast from wear.
  • Power system

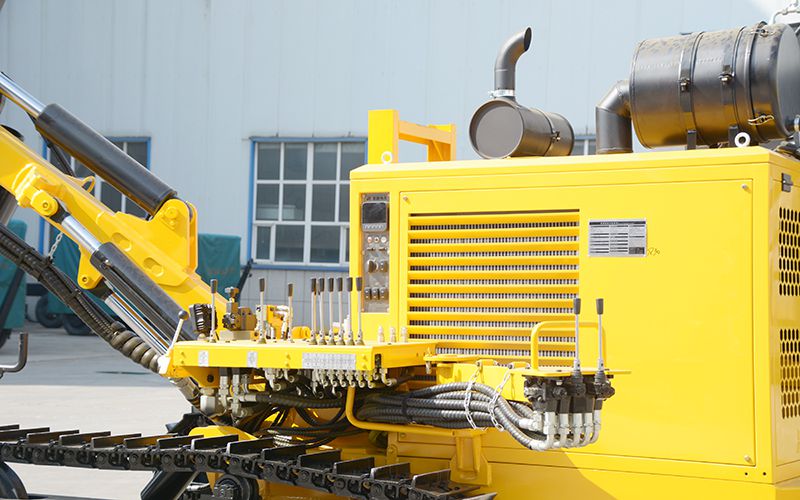

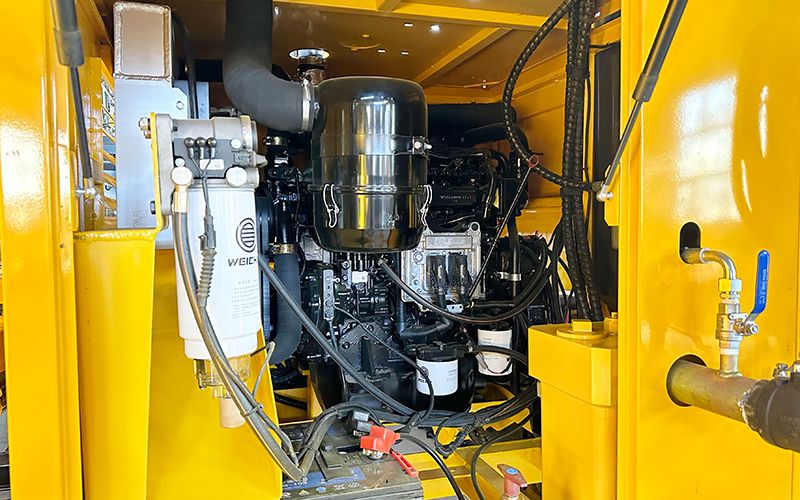

    Power system
    Imported hydraulic pumps feature pressure resistance, large output, high quality and long service life.
    The turbocharged engine provides strong driving forces, and it is easy to maintain.
    Two-stage air filter ensures intake of clean air, safety and reliability.
    Integrated oil-water cooler facilitates operation of motors and the hydraulic system in high heat environments.
  • Maintenance-free feed system

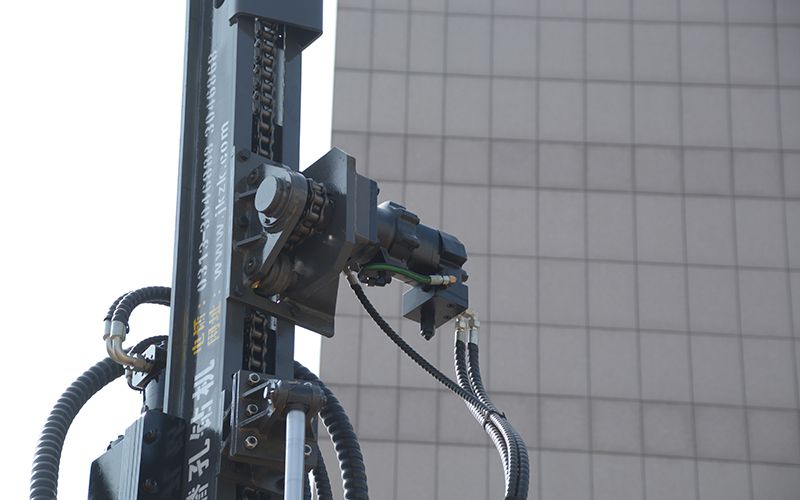

    Maintenance-free feed system
    Hydraulic-mechanical lock system supports stable torque output of hydraulic motors while avoiding hydraulic leak and sliding. The locks don’t need routine oiling and maintenance.
  • Control panel

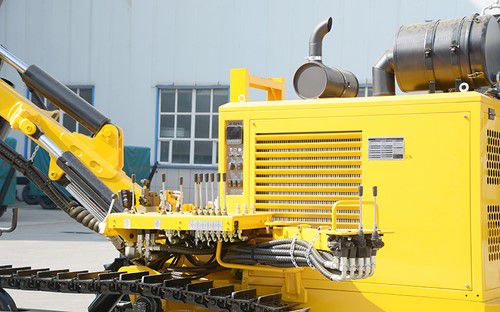

    Control panel
    All-in-one control system enables all operational controls of the drilling rig.
    The control panel adopts an independent travelling system that enables 3 speed shifting. The cabin provides a wide view to ensure safe operation.
    Imported control valves deliver reliable performance.
  • Maintenance-free undercarriage

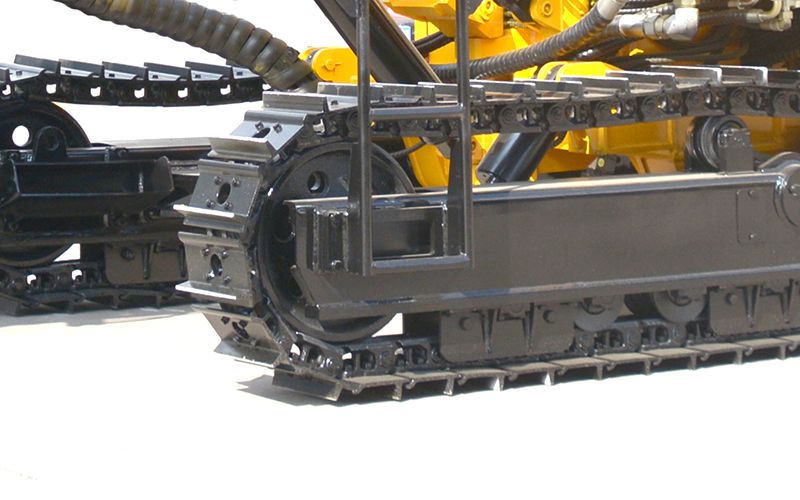

    Maintenance-free undercarriage
    Imported motors provide strong driving forces that offer robust climbing capability. They also can drive air compressors. Optional non-powered travel motors are available.
    Two speed travelling system features high travelling speed which saves time.
    4 leveling jacks are designed to angle to 15 degrees left and right to support drilling work in rough terrains.
    Maintenance-free rollers don’t need oiling.
    Track guards are equipped to prevent track from derailing.
  • Drilling arm

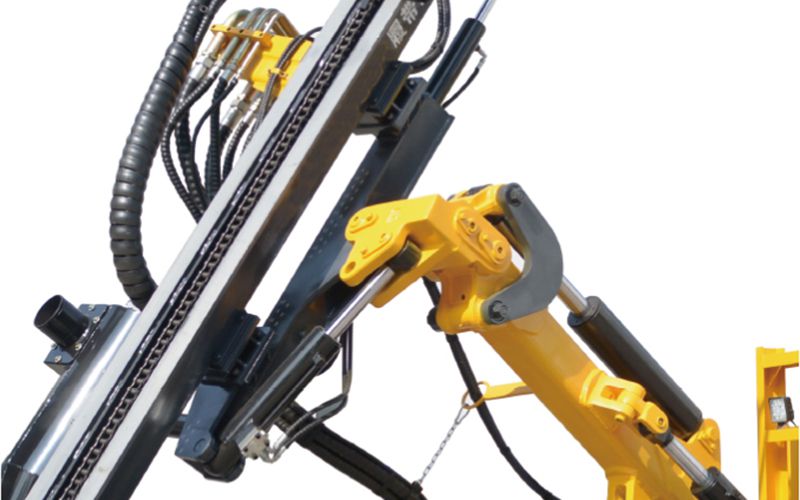

    Drilling arm
    Extended drilling arm enables multi-angle drilling, for example, drilling horizontal, vertical and inclined holes.
    The drilling arm covers a fan-shaped area 20% larger than those of other drilling rigs.
Customizable Drilling Equipment

We provide customized drilling solutions tailored to your needs.

  • Before designing the drilling solutions, we will get a deep understanding of challenges and problems in your projects.
  • Since there are no exactly the same drilling projects, our rich experience contributes to simple and cost-effective solutions.
  • We are experienced in designing high-performance drilling rigs to meet various needs in a wide range of industries.
  • Our expertise in machinery, electric, hydraulic and pneumatic fields enable us to manufacture excellent drilling machines.

The hydraulic drilling rig is mainly composed of power unit, hydraulic system, crawler travelling unit, hydraulic rock drill and drilling arm.

Rock drilling equipment are widely used in pre-drilling hard rock, micro piling, geothermal, solar, foundation, deep well and geotechnical drilling applications.

Surface drilling rigs are designed to improve productivity and minimize the fuel consumption and operational costs. The hydraulic system facilitates beam movement, drilling and feeding. This type of drilling rig is durable and sturdy and it consumes less energy to operate for a long time.
