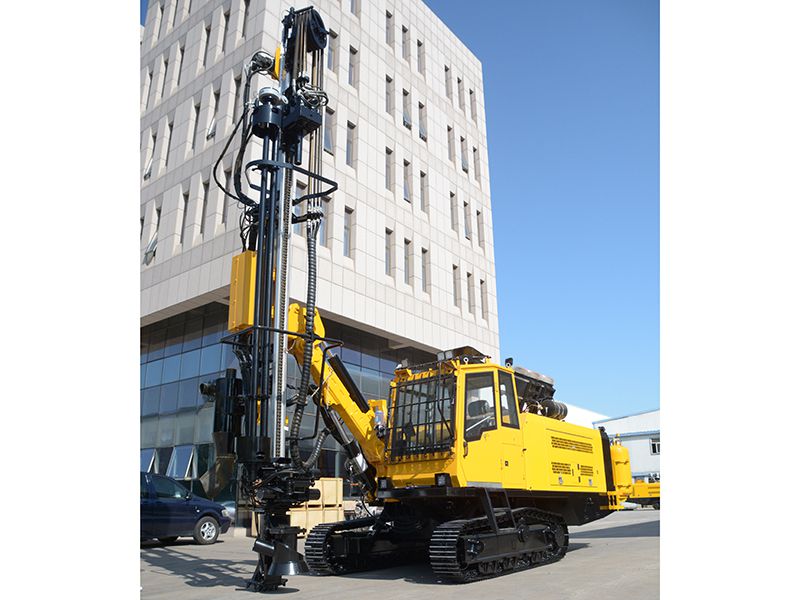

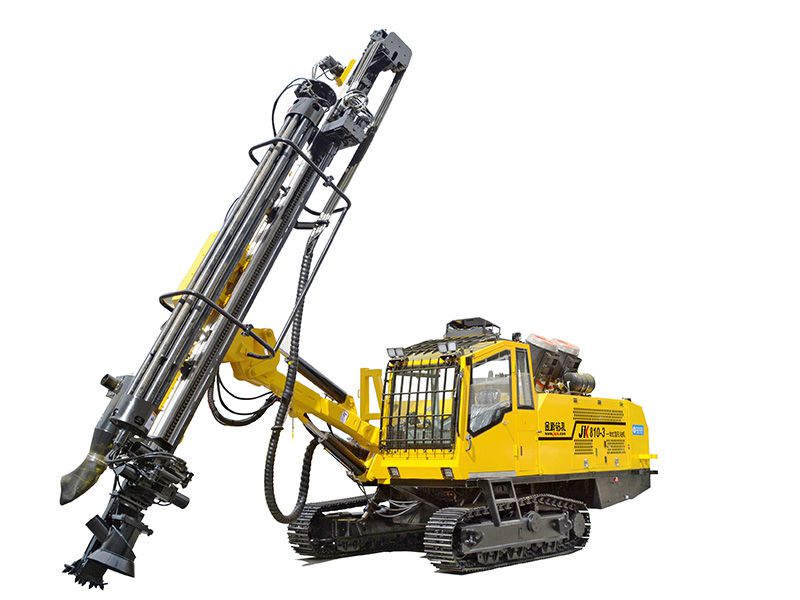

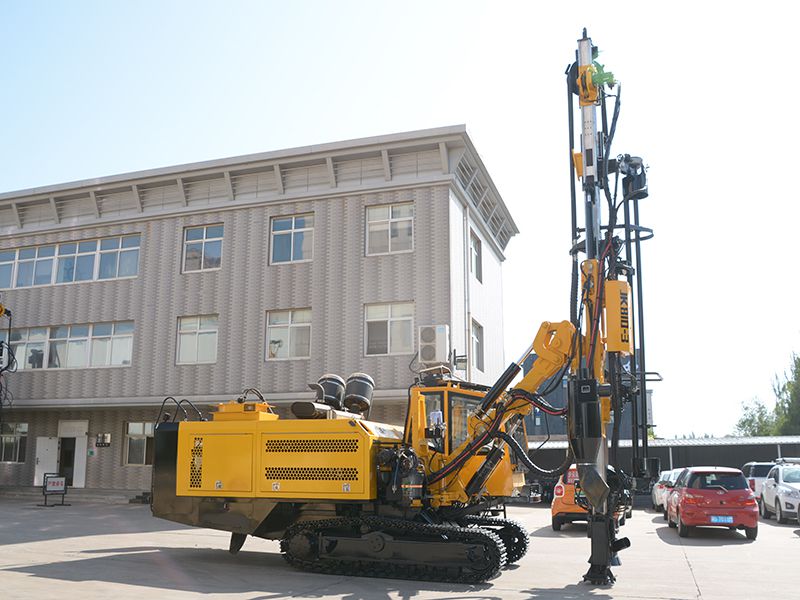

Integrated Hydraulic Crawler Mounted DTH Drilling Rig

JK810-3

Integrated Hydraulic Crawler Mounted DTH Drilling Rig

Surface drilling equipment
Borehole diameter: 90-165mm
Drill rod length: 4m
Walking speed: 2.2 (low speed) 3.5 (high speed)
Optional: Automatic lubrication system for drill rods
Request a Quote

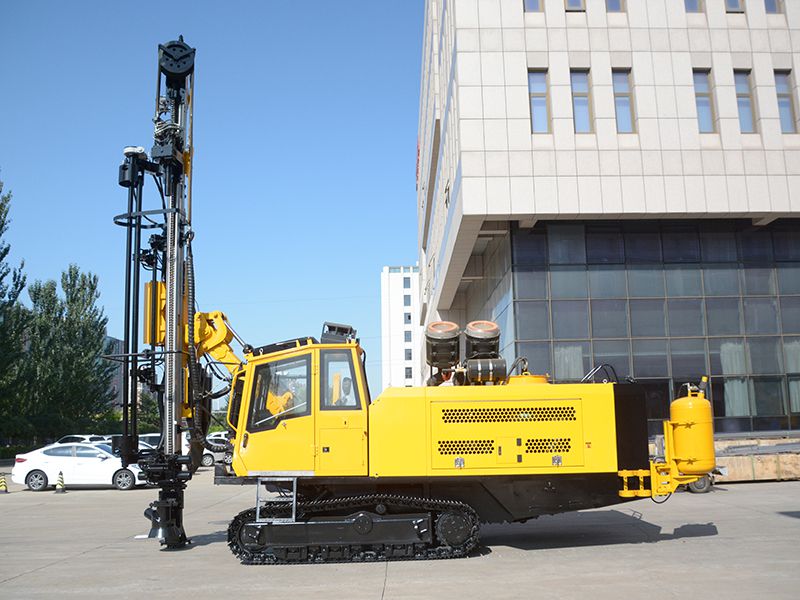

JK810 Integrated Hydraulic DTH Drilling Rig

JK810 integrated hydraulic DTH drilling rig features strong automation capability, reliable drilling performance, user-friendly operation and green drilling methods. The rig is equipped with a FOPS-certified cabin and automatic rod exchange system. Heavy-duty undercarriage with wide tracks ensures both maneuverability and safety. The hydraulic dust collecting system meets the environmental protection regulations, which makes it a reliable solution to realize the modern green mining.

Applications

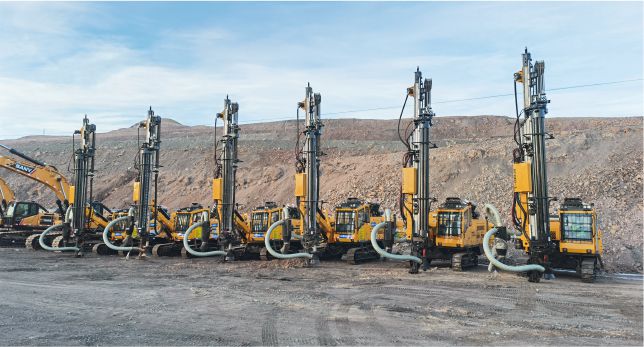

The integrated drilling rig is mainly applied for hydro-power engineering, open pit mining, road construction and blasting operation of national defense engineering.

Integrated Hydraulic Crawler Mounted DTH Drilling Rig
Integrated Hydraulic Crawler Mounted DTH Drilling Rig Integrated Hydraulic Crawler Mounted DTH Drilling Rig Integrated Hydraulic Crawler Mounted DTH Drilling Rig
Technical Specifications
Model JK810-3
General Weight kg 18000
Length mm 9920 (transport)
Width mm 2700
Height mm 3300
Undercarriage Track width mm 350
Ground clearance mm ≥400
Track oscillation ° ±10°
Walking speed km/h 2.2 (low speed) 3.5 (high speed)
Grade ability ° 20°
Engine Model QSL8.9-C360-30
Type Water-cooled 6-cylinder EFI diesel engine
Rated power kW/rpm 264/2100
Fuel tank capacity L 450-500
Air compressor Model Atlas Copco two-stage rotary screw air compressor
Working pressure bar 20
Max. free air delivery (FAD) m³/min 19.8
Rotary motor Rotation rate rpm 0-160
Max. rotation torque Nm 3300
Feeding method Hydraulic motor + chain
Feeding force kN 12
Lifting force kN 18
Feed Feeding stroke mm 4750
Feed extension mm 1100
Drill rod changer Drilling diameter mm Ø90 - Ø165
Drilling depth m 28
Rod diameter mm Ø76/ Ø 89
Rod length m 4
Rod capacity piece 6+1
Hammer specs 4' - 5'
Dust collector Collecting method Hydraulic dust collecting
Main Components
  • Feeding system

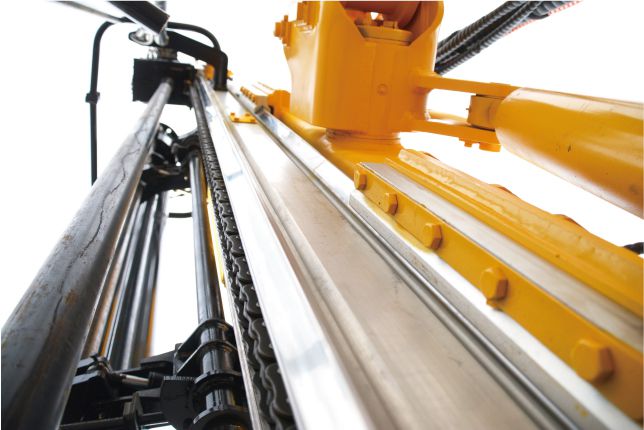

    Feeding system
    Stainless steel-made and wear-resistant cover is adopted to protect the feeding beam and drill strings.
    The rotation unit delivers large torque and high reduction ratio. With a special design, it reduces the possibility of getting struck and the rotation speed is adjustable based on rock characteristics.
    Imported seals ensure reliable sealing performance and long service life.
  • Automatic rod exchanger

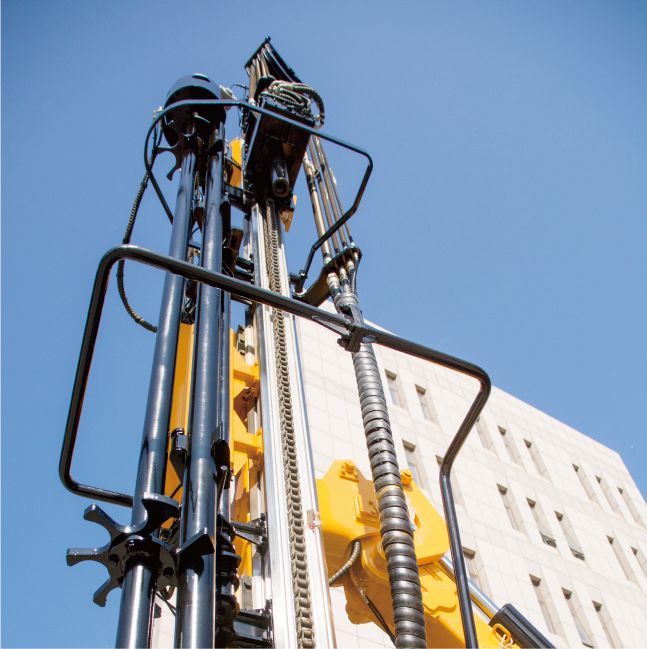

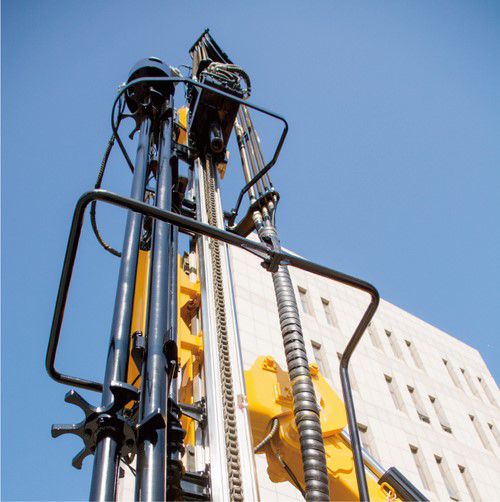

    Automatic rod exchanger
    All the functions, such as rod storage, rod loading and unloading, movement of the mechanical clamps, can be controlled easily with one single joystick.
    Adopting a clamping design, the changer can easily unload the rod and increase work efficiency.
    With one button, the system can automatically change rods.
  • Air compressor

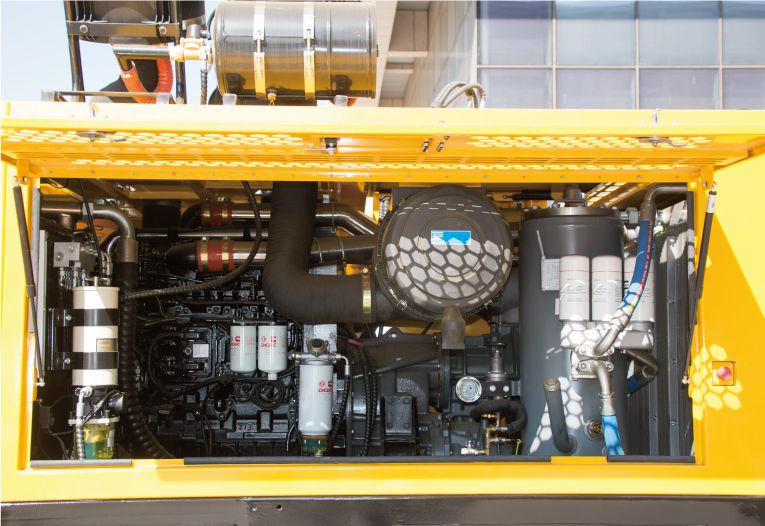

    Air compressor
    Atlas Copco two-stage air compressor with strong air output is reliable and powerful. It is applicable to rock formations of various hardness and offers high penetration rate with ease.
  • Engine

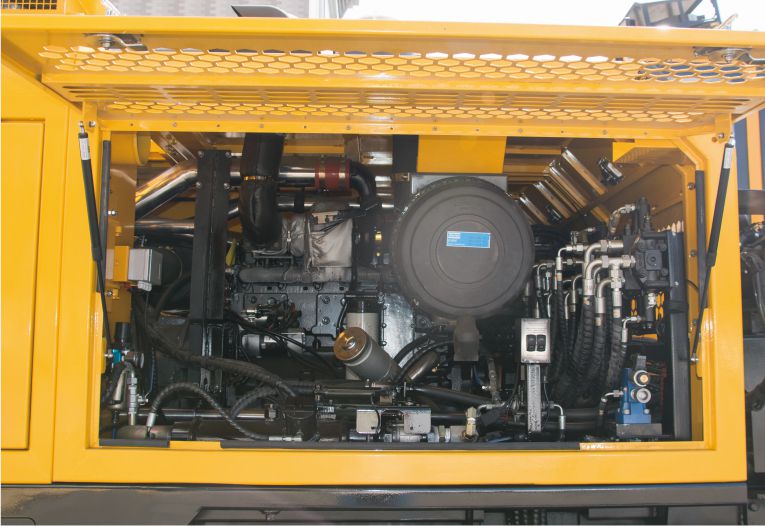

    Engine
    High-power turbocharged direct injection engine with water cooling function delivers reliable performance and is energy-saving.
    The three-stage air filter system ensures intake of clean air and greatly reduces the engine failure rate.
  • Control panel

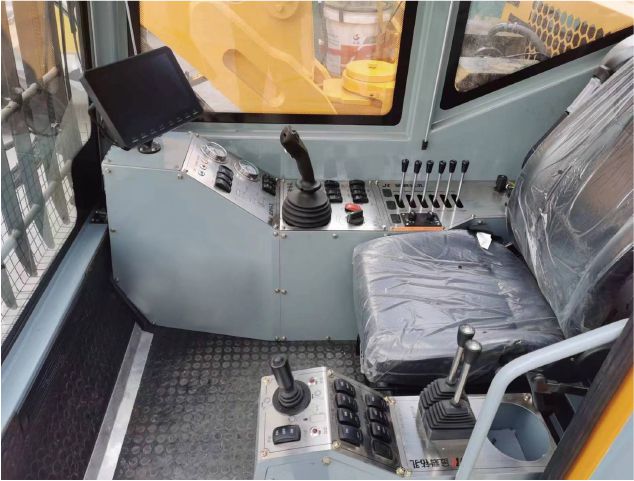

    Control panel
    The control valves adopt a prior hydraulic control system that feature flexible control, reliable performance and easy maintenance. It greatly facilitates the operation of the rig.
    The control system enables rapid feeding and lifting. The feeding force is adjustable based on different environments, which reduces drilling time and increases efficiency.
  • Cabin

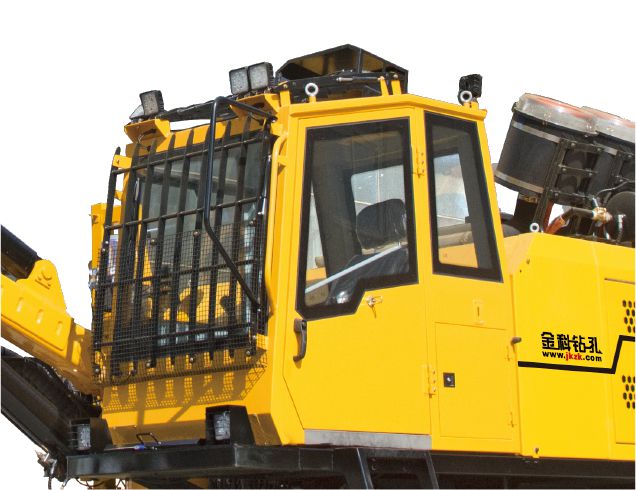

    Cabin
    The FOPS-certified enclosed cabin is equipped with an air conditioner, which meets the labor protection standards of the US and Europe.
    A large safety window offers a wide view which enables operators to better control the rig.
  • Control system

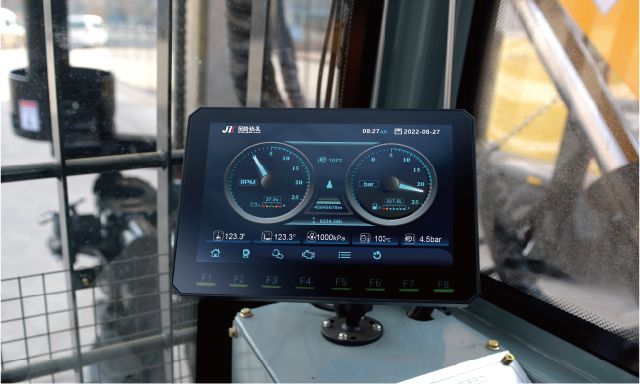

    Control system
    The dashboard clearly displays the operational parameters, prompts and warning in real time for convenient monitoring and precise hole drilling.
  • Dust Collector
    Dust Collector
    The hydraulic dust collector with a sliding cover that collects dust delivers stable and efficient performance, which extends the rig’s service life and ensures a clean working environment.
  • Undercarriage

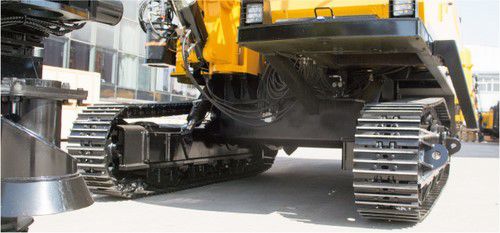

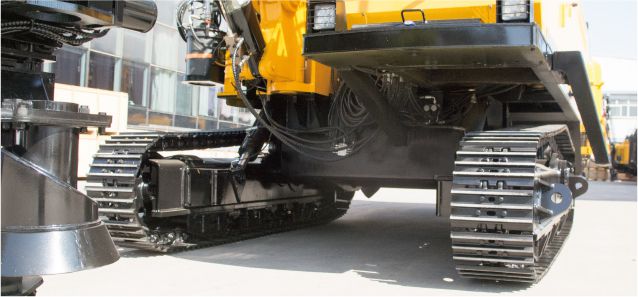

    Undercarriage
    The undercarriage adopts a robust design of four wheels and one track. Widened tracks enable smooth travelling and strong climbing capability to support heavy-duty drilling jobs.
    4 leveling jacks are designed to angle to 10 degrees left and right to support drilling work in rough terrains. It supports high and low speed shifts to realize flexible movement between drilling sites.
    With a ground clearance of more than 400 mm, it can travel through rough terrains without colliding with the ground.

As mining technology is developed, the number of drilling methods is increasing. The common drilling methods include auger drilling, rotary air blasting, reverse circulation drilling, diamond core drilling, blast hole drilling and hydraulic rotary drilling.

The DTH system is applicable to a wide range of rocks, including soft, medium hard and extreme hard rocks, and various formations.
