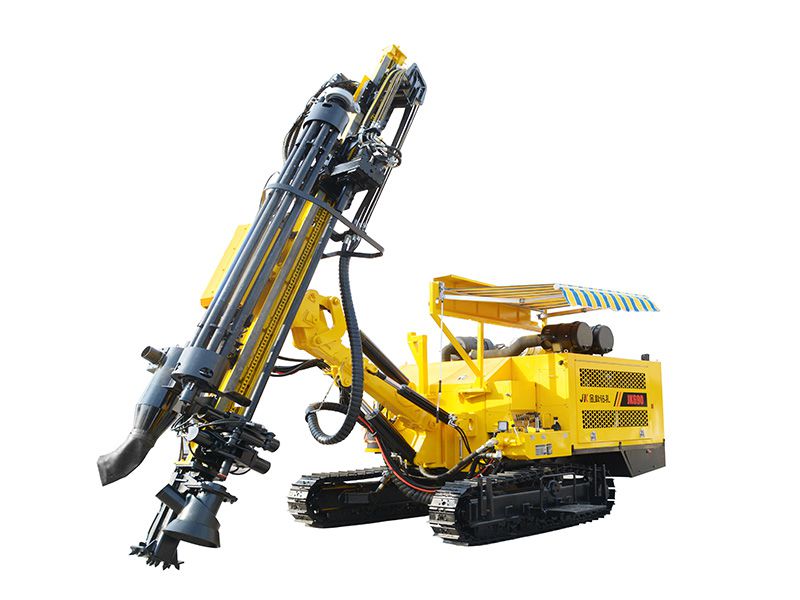

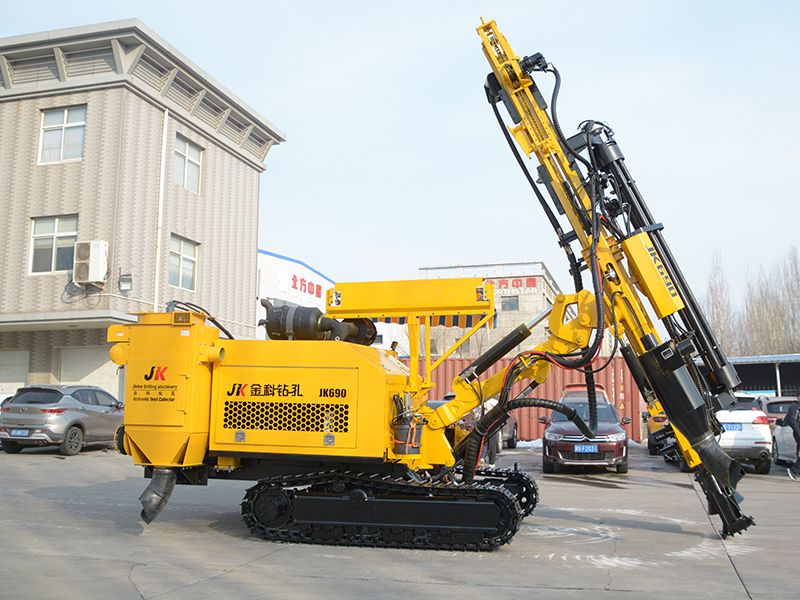

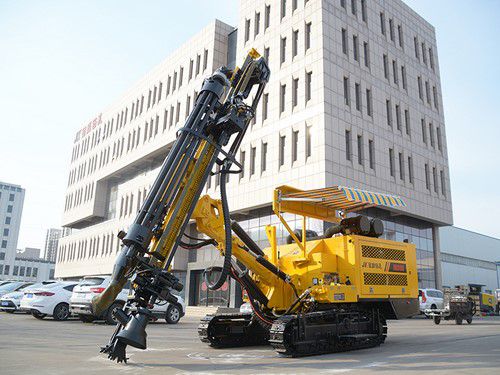

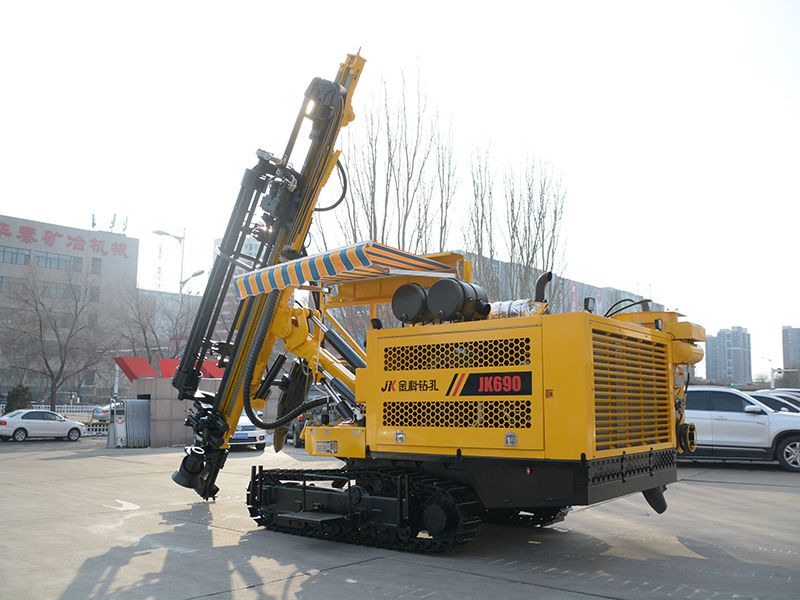

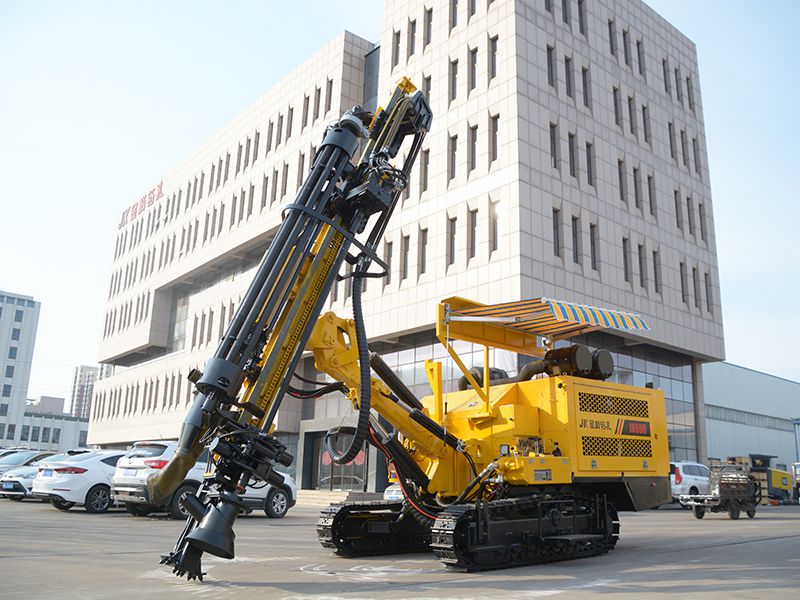

Integrated Hydraulic Crawler Mounted DTH Drilling Rig

JK690

Integrated Hydraulic Crawler Mounted DTH Drilling Rig

Surface drilling equipment
Borehole diameter: 90-160mm
Drill rod length: 3m
Walking speed: 2.5km/h, 3.5km/h
Optional: Dual-drive high-low speed rotary system, Automatic rod lubrication system, Wet dust collector
Request a Quote
JK690 Integrated Hydraulic DTH Drilling Rig

The integrated DTH drilling rig brings you the experience of automation and high efficiency. The integrated design of the drilling rig and the air compressor, along with a high-performance hydraulic dust collector, makes it a suitable choice for green and efficient mining job.

Applications
The integrated drilling rig is mainly applied for hydro-power engineering, open-pit mining, road construction and blasting operation of national defense engineering.

Integrated Hydraulic Crawler Mounted DTH Drilling Rig
Integrated Hydraulic Crawler Mounted DTH Drilling Rig Integrated Hydraulic Crawler Mounted DTH Drilling Rig Integrated Hydraulic Crawler Mounted DTH Drilling Rig
Features
  • The engine has been upgraded with larger power and high-strength materials to resist inertia force caused by high-speed rotation and ensure stability of motors.
  • The rig has adopted a more efficient electric structure and operational mode to reduce power loss and increase energy efficiency.
  • The pressure and the maximum output of air compressor have been optimized to improve work efficiency.
Technical Specifications
Model JK690
Engine Model WP7G300E300
Type Water-cooled 6-cylinder EFI diesel engine
Rated power kW/rpm 220/2300
Fuel tank capacity L 400
Air compressor Brand Atlas Copco
Working pressure bar 20
Max. free air delivery (FAD) m³/min 18.5
Drill rod changer Drilling diameter mm Ø90-Ø160
Rod length m 3
Rod diameter mm Ø76/Ø89
Rod capacity 6+1
Drilling depth m 21
Rotary motor Rotation rate rpm 0-140
Max. rotation torque Nm 3300
Feeding method Motor-driven planetary gearbox + chain
Feeding force KN 12
Lifting force KN 21
Feeding stroke mm 3990
Feed extension mm 1100
Undercarriage Track width mm 300
Ground clearance mm 370
Track oscillation ° ±10°
Walking speed km/h 2.5 (low speed)
3.5 (high speed)
Grade ability ° 27°
General Weight kg 14000
Length mm 8750
Width mm 2900 (with dust collector)
Height mm 3350
Dust collector Hydraulic dry dust collector (optional: wet dust collector)
Main Components
  • Rotation unit

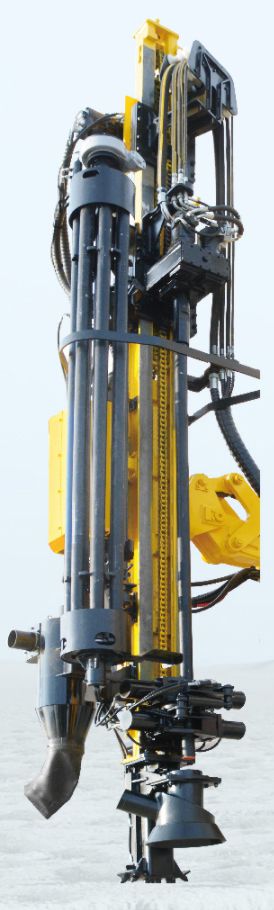

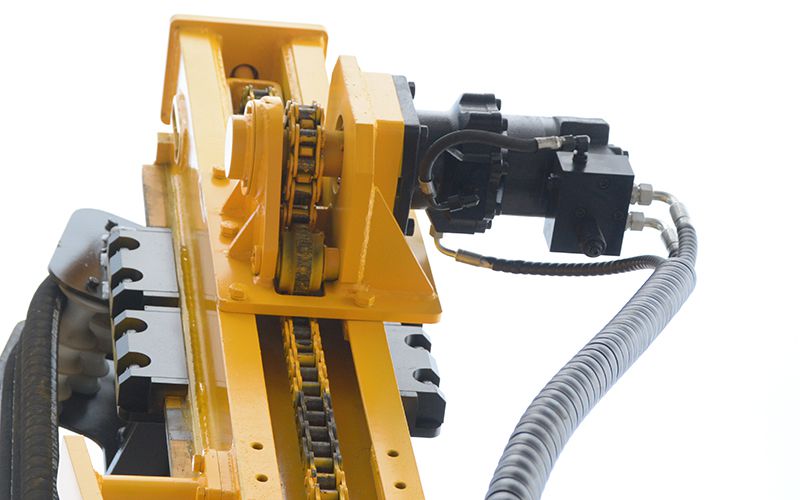

    Rotation unit
    The rotation unit delivers large torque and high reduction ratio which contribute to high transmission efficiency, stable operation and low failure rates. The reliable performance lowers maintenance costs.
    It reduces the possibility of drill bits getting stuck in unconsolidated formation and increases the success rate of drilling holes.
    High molecular liner plates are wear-resistant and durable, with no need of oiling.
    Manganese steel-framed guide rail is added to protect the mast from wear.
    Optional dual-drive high-low speed rotation system is available.
  • Automatic rod changer

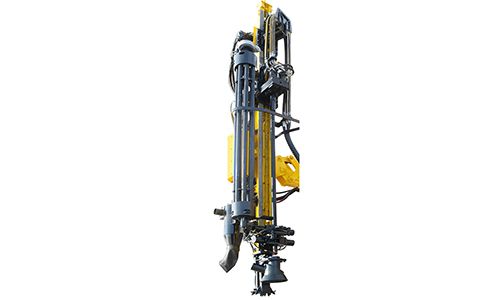

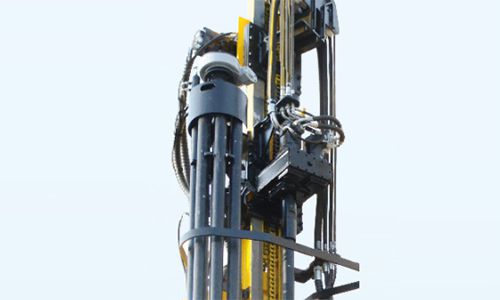

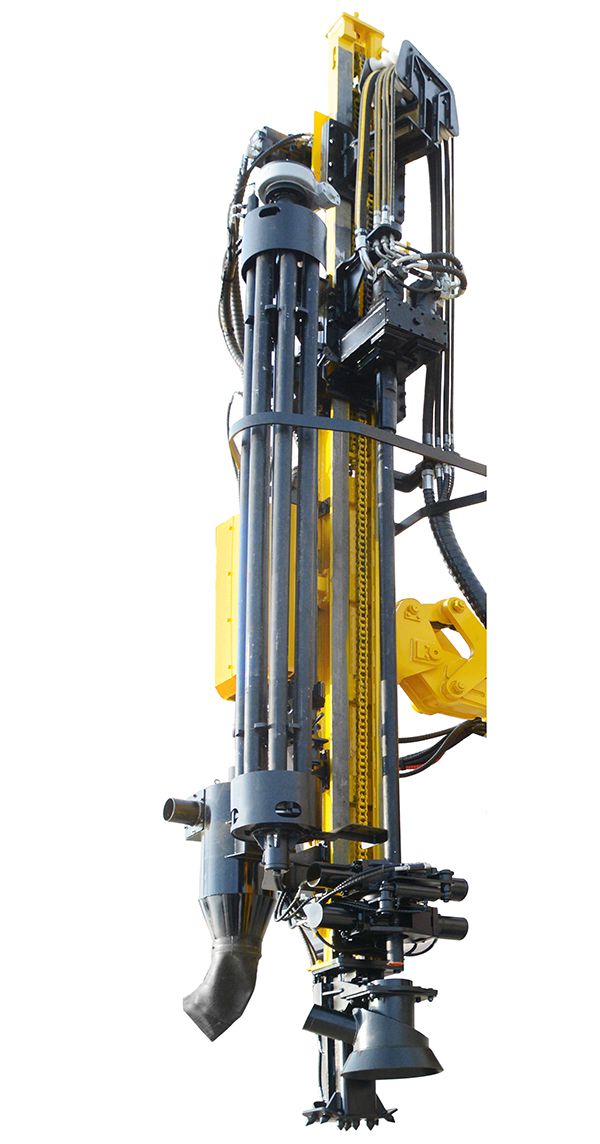

    Automatic rod changer
    It is simple to operate the automatic rod changer to control rod storage, rod loading, unloading and movement of machine clamp just with one joystick.
    Adopting a clamping design, the changer can easily unload the rod and increase work efficiency.
  • Operation system

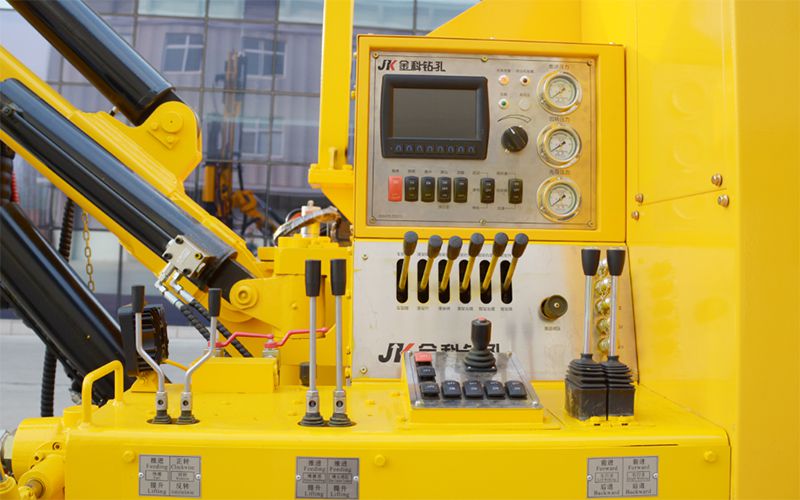

    Operation system
    All the operations of the rig can be realized by the integrated control system.
    The control system enables rapid feeding and lifting. The feeding force is adjustable based on different environments, which reduces drilling time and increases efficiency.
  • Undercarriage

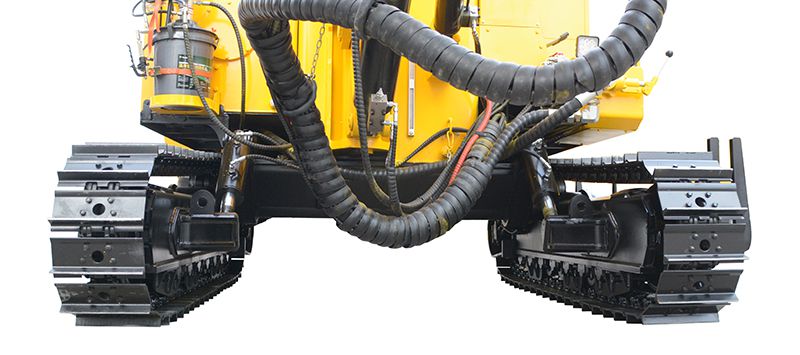

    Undercarriage
    The undercarriage adopts a robust design of four wheels and one track. Widened tracks enable smooth travelling and strong climbing capability to support heavy-duty drilling jobs.
    4 leveling jacks are designed to angle to 10 degrees left and right to support drilling work in rough terrains. It supports high and low speed shifts to realize flexible movement between drilling sites.
  • Maintenance-fee feeding system
    Maintenance-fee feeding system
    Hydraulic-mechanical lock system supports stable torque output of hydraulic motors while avoiding hydraulic leak and sliding.
  • Dust collecting system
    Dust collecting system
    The hydraulic dust collector with a sliding cover that collects dust delivers stable and efficient performance, which extends the rig’s service life and ensures a clean working environment.
  • Power system

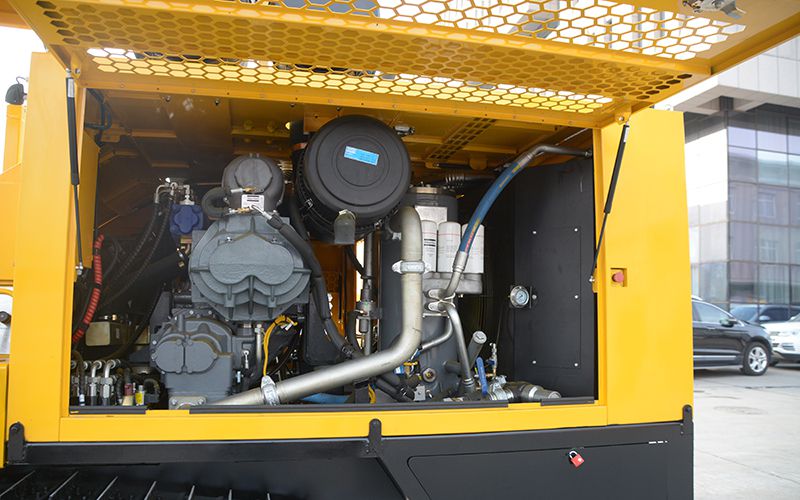

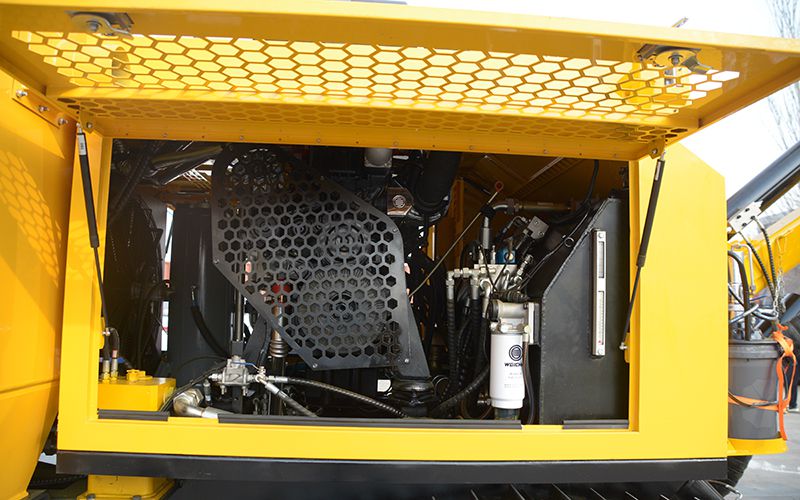

    Power system
    High-power turbocharged direct injection engine with water cooling function delivers reliable performance and is energy-saving.
    Two-stage air filter ensures intake of clean air and reduces failure rates of the engine.
    Imported hydraulic pumps feature pressure resistance, large output, high quality and long service life.
  • Air compressor
    Air compressor
    Atlas Copco air compressor with working pressure of 20 bar and air delivery of 18.5 m3/min demonstrates reliable performance to support drilling through a variety of rocks.

In terms of quarrying machines, rock drilling rigs include surface top hammer drilling rigs, rotary blasthole drill rigs, and surface DTH drill rigs which are the most important one.

Deep hole drilling rigs are applicable to drilling work in a variety of formations. Driving drill bits directly through drilling rods is more energy efficient, with less energy loss, and offers stable speed and high drilling precision. Deep-hole drilling rigs are also easy to maintain.
